Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding

Nome da marca:	HanWei
Número do modelo:	HW-B
MOQ:	1 Set
preço:	USD / Set
Condições de pagamento:	T/T
Capacidade de abastecimento:	2000 Sets / year

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin:

Shenzhen, China

Certificação:

Laser Power:

1000W

Wavelength (nm):

445nm

Cooling Method:

Water Cooling

Gas Type:

Co-axial / Side Gas

Head Structure:

T / F/ Y

Operating Temperature (℃):

5-40

Welding Materials:

Copper / Gold / Silver

Core Diameter:

200 μm / 0.22 NA

Power Stability:

± 0.5 %

Connection:

D80 / QBH

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Descrição do produto

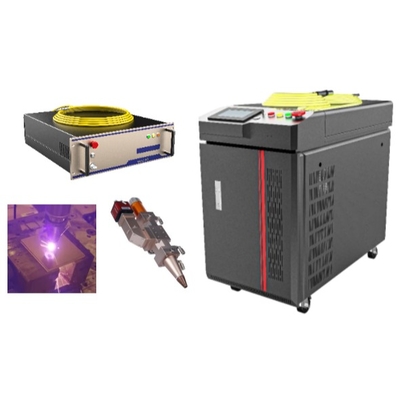

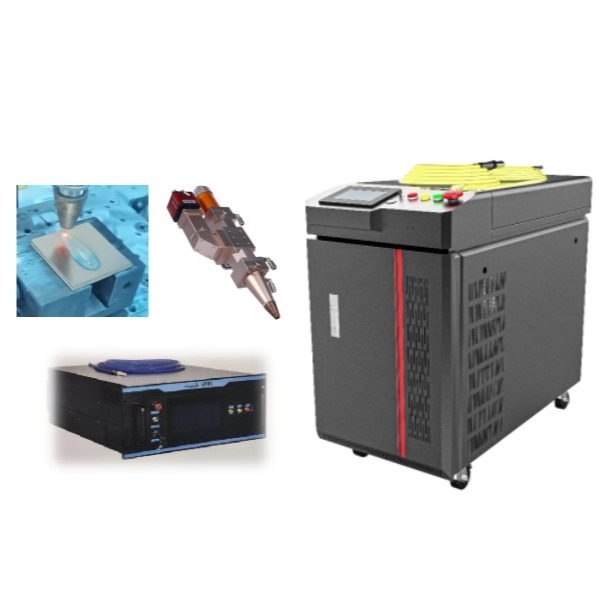

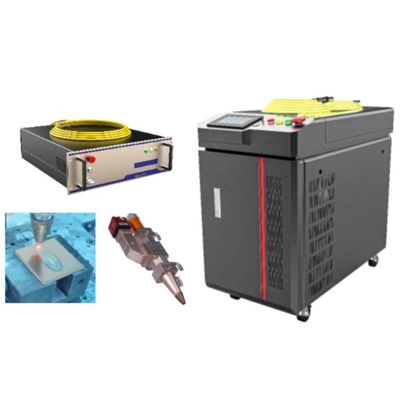

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding Description:

Hanwei's blue laser welding systems, engineered to meet the advanced standards of leading products from Europe, America, and Japan, integrate core technologies developed through independent innovation. These include an in-house blue laser source, an exclusive blue laser control system, and a range of purpose-built blue laser welding heads—innovations that open a new era in laser welding for highly reflective materials.

Tailored specifically for joining reflective metals like copper, silver, and gold, this system takes advantage of the unique ultra-high absorption properties of the blue laser spectrum. Reflective materials absorb more than 70% of blue wavelengths, bringing substantial advantages in processing high-reflectivity substrates: it allows for spatter-free operation, offers exceptional stability, ensures superior weld quality, and boasts the groundbreaking capability to achieve double-sided formation through single-sided welding.

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding 0

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding Features:

1.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.

2.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

3.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.
4.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding Technical Parameters:

Model	HW-B
Cooling Method	Water Cooling
Head Option	Blue Laser Hybrid
Machine Size	1000450850mm
Core Diameter	200 μm / 0.22 NA
Laser Core	50um / 100um
Wavelength(um)	445 nm
Laser Power	1000 W
Pulse Rising Time (μs)	＜ 20
Laser Beam	Stationary / Wobble
Modulation Frequency (Hz)	1-10000
Power Stability	± 0.5 %
Head Weight	4 Kg

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding Application:

1.Semiconductor Industry.
2.New Energy Resources - Battery Busbar with Copper or Aluminium.

3.Automobile industry.
4.Jewelry industry.
5.Computer,Communication,Consumer Electronics - 3C Industry.

Water Cooling 1000W Blue Laser Hybrid Welding Machine for Copper Welding Sample:

Shen Zhen HanWei Laser Enterprise and Feature:

Founded in 2016 with its base in Shenzhen, Hanwei Laser Equipment Co., Ltd. is a national-level high-tech enterprise and one of the few global firms to be awarded the title of "specialized, sophisticated, distinctive, and novel." Backed by a team of 50 specialists, the company focuses on the entire laser welding industry chain, possessing professional expertise in the research, development, manufacturing, and marketing of welding lasers, control/optical systems, and related technologies.

Hanwei Laser provides cutting-edge laser welding technology and high-quality equipment to international laser integrators. Its product lineup, encompassing desktop and portable devices, integrates advanced technologies like fiber, pulsed/continuous-wave, blue, diode, and hybrid lasers, all customized to fulfill specific needs. Moreover, the company offers personalized solutions, training, and support services to ensure that clients can fully utilize their laser systems.

Driven by the mission of making world-class welding technology accessible to all integrators, Hanwei has built an extensive global network. It runs branches and subsidiaries across Europe, North America, Asia, and the Middle East, delivering services to clients worldwide.
