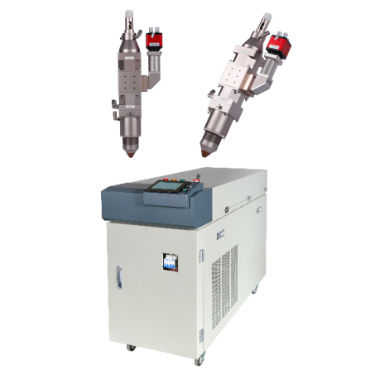

HW 600w Single Lamp Single Bar Full Chamber YAG Energy Negative Feedback Welder

HW 600w Single Lamp Single Bar Full Chamber YAG Energy Negative Feedback Welder

Nome da marca:	HanWei
Número do modelo:	HW-Y-600
MOQ:	1 conjunto
preço:	USD / Set
Condições de pagamento:	T/T.
Capacidade de abastecimento:	2000 conjuntos / ano

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

Modelo:

HW-Y-600

Tensão de entrada:

AC380V 50/60 de hertz

Comprimento de onda:

1064nm

Modo de resfriamento:

Resfriamento de água

Max Pulse Energy:

70/100 j

Potência de saída:

Repetir frequência:

100Hz

Estabilidade de energia:

± 3 %

Peso líquido:

240 kg

Tipo de separação óptica:

Tempo / energia

Largura de pulso:

Senhora 15

Rota óptica:

1 ~ 4 (opcional)

Dimensão:

1375*628*1150 mm

Potência máxima:

10 kw

Modo de trabalho:

Pulso

Energia do equipamento:

20 KW

Detalhes da embalagem:

Exportar embalagem de madeira compensada

Habilidade da fonte:

2000 conjuntos / ano

Destacar:

600w YAG laser welder

single lamp industrial welder

full chamber energy feedback welder

Descrição do produto

HW 600w Single Lamp Single Bar Full Chamber YAG Energy Negative Feedback Welder

As a flagship product of our company, the HW-YAG-600W adopts a single-lamp-and-rod configuration, while incorporating core components such as imported optical resonators. It boasts a high damage resistance threshold and stable light speed; in terms of technical specifications, it utilizes a self-developed PID adaptive feedback power supply system--this effectively ensures the equipment delivers high conversion efficiency, robust beam stability, excellent penetration capability, and faster welding speed.

When applied to power battery tab welding and seal nail welding, this product achieves a welding efficiency of up to 6 PPM and a qualification rate of 99.5%, making it widely used in the field of power battery welding. Additionally, the equipment is equipped with intelligent monitoring functions for critical parameters, including water flow, water temperature with specific conductivity, and xenon lamps.

Key Features

Independent R&D, production and sales
Imported quartz optical lenses and accessories
More stable light spots and stronger penetration
Equipped with multiple intelligent monitoring functions
Single-lamp & single-rod full-cavity water cooling
Unique optical system design

Technical Specifications

Model	HW-Y-600
Input Voltage	AC380V 50/60 Hz
Wavelength	1064nm
Output Power	600W
Net Weight	240 Kg
Pulse Width	15 ms
Repeat Frequency	100 Hz
Power Stability	70/100 J
Working Mode	Pulse
Cooling Mode	Water Cooling
Max Pulse Energy	± 3 %
Max Peak Power	10 Kw
Dimension	13756281150mm
Optical Route	1~4 (Optional)
Optical Separate Type	Time / Energy
Equipment Power	20 Kw

Areas of Applications

New energy battery welding, particularly used in the power battery field.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a certified national high-tech and "specialized, sophisticated, distinctive, and novel" enterprise, we focus on full-industry-chain R&D, production, and sales of welding-dedicated lasers and related technologies.

Our product portfolio includes:

Ring-Spot laser welding equipment
Blue laser welding equipment
Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
YAG and Diode laser welding equipment
Mold repair laser welding equipment
QCW laser welding equipment

With a team of technical experts specializing in laser welding R&D, we serve industries including new energy batteries, automotive, electronics, medical devices, and more. Our products deliver irreplaceable welding performance across multiple applications.
