Máquina de solda a laser industrial
Created with Pixso.

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding

Nome da marca: HanWei
Número do modelo: HW-QCW
MOQ: 1 conjunto
preço: USD / Set
Condições de pagamento: T/T.
Capacidade de abastecimento: 2000 conjuntos / ano
Informações pormenorizadas
Lugar de origem:
Shenzhen, China
Certificação:
CE
Power a laser:
150W/300W
Tamanho da máquina:
665*450*300 mm
Potência de pico:
1500W/3000W
Consumo de energia:
2 kW/2,5 kW
Largura de pulso:
0.5-50
energia de pulso:
15J/30J
Comprimento de onda:
1070nm ± 10%
Estabilidade de energia:
≤ ± 1%
Tensão de entrada:
AC220V 50/60Hz
Método de resfriamento:
Resfriamento de ar
Peso da máquina:
22kg/28kg
Freqüência:
100 Hz/2 kHz
Detalhes da embalagem:
Exportar embalagem de madeira compensada
Habilidade da fonte:
2000 conjuntos / ano
Descrição do produto
HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Description:



Quasi-continuous wave (QCW) fiber lasers serve as an optimal option for industrial scenarios requiring long pulse durations and high peak power, including spot welding and seam welding. This product is tailor-made to substitute certain YAG laser welding applications, which can notably lower maintenance expenses and reduce the need for upkeep. The enterprise is among the rare global companies capable of independently developing a full suite of software and hardware, spanning from laser high-speed beam splitting systems, energy splitting systems to time splitting systems.

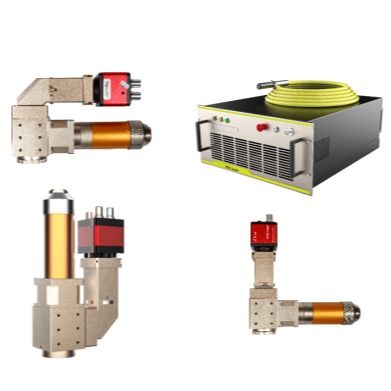

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding 0

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Features:

1. Stable laser beam quality.
2. Compact structure with air cooling method.
3. Up to 30% electro - optical conversion efficiency, economical and environmentally friendly.



HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Technical Parameters:

Model

HW-Q-150

HW-Q-300

Input Voltage

AC220V 50/60Hz

AC220V 50/60Hz

Machine Size

665*450*300 mm

665*450*300 mm

Wavelength

1070nm ± 10%

1070nm ± 10%

Frequency

100 Hz

2 KHz

Machine Weight

22 Kg

28 Kg

Laser Power

150 W

300 W

Peak Power

1500 W

3000 W

Pulse Width

0.5-50

0.5-50

Pulse Energy

15 J

30 J

Power Stability

≤ ± 1%

≤ ± 1%

Power Consumption

2 Kw

2.5 Kw

Cooling Method

Air Cooling

Air Cooling



HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Application:

The consumer electronics industry is mainly used for welding high - precision components of consumer
electronics products.
1. Diverse product types.
2. Suitable for 3C products and precision welding.
3. Cost-effective and efficient.



Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all integrators. The company is one of the few enterprises worldwide that hold both national high-tech certification and the "specialized, sophisticated, distinctive, and novel" qualification. It focuses on the full-industry-chain research, development, production, and sales of welding-dedicated lasers, laser control systems, laser optical systems, and laser welding processes.



Its product range mainly includes:



Ring-Spot laser welding machines, blue laser welding machines, blue laser + fiber hybrid welding machines, Diode + fiber hybrid welding machines, YAG + Diode hybrid welding machines, YAG laser welding machines, Diode laser welding machines, mold repair laser welding machines, QCW laser welding machines. It also offers supporting laser welding control systems, laser welding optical systems, and related auxiliary products for laser welding peripherals.



Guided by the concept of "taking R&D as the core, technology as the guarantee, and service as the support," the company has always focused on serving B-end customers (laser equipment and automation enterprises). It adheres to the service goals of "reliable quality, continuous improvement, persistent innovation, and considerate service." Hanwei consistently provides integrators with internationally advanced welding products and full-lifecycle technical services, covering component procurement, R&D and manufacturing, assembly testing, and sales support. The company has assembled outstanding talents from across China, with a team of technical professionals who have long-term experience in laser welding R&D. In particular, it has extensive theoretical and practical knowledge in key fields such as laser development, laser systems, laser power supplies, laser control, laser optical system design, and welding process research.



Hanwei’s products are widely used in industries such as new energy batteries, automobiles, auto parts, electronic circuits, optical fiber communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, meters, gold and silver jewelry, medical devices, solar energy, eyewear manufacturing, and the motor industry. In many of these fields, a number of its products offer irreplaceable welding performance.

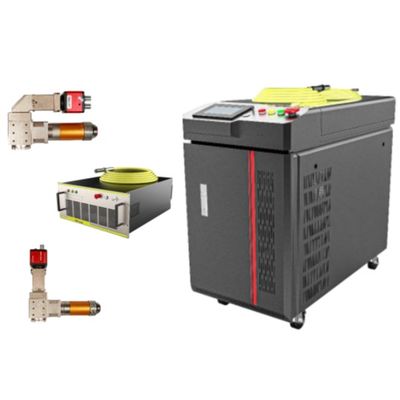

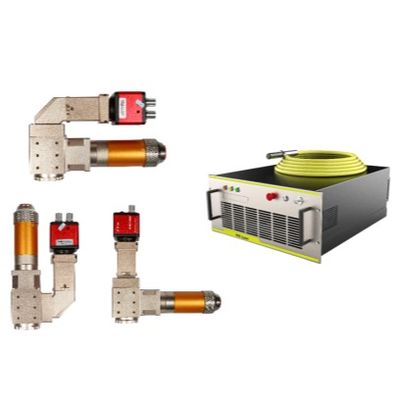

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding 1HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding 2HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding 3HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding 4
