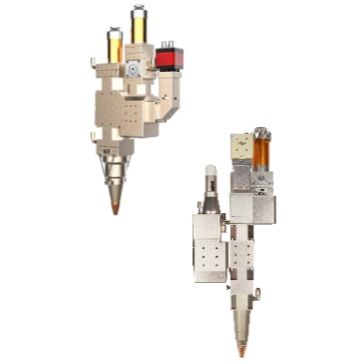

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper

Nome da marca:	HanWei
Número do modelo:	HW-36-70-100200-Y-QBH
MOQ:	1 conjunto
preço:	USD / Set
Condições de pagamento:	T/T.
Capacidade de abastecimento:	2000 conjuntos / ano

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

Modelo:

HW-36-70-100200-Y-QBH

Peso líquido:

2,5 kg

Tipo de cabeça:

Power a laser:

Laser azul 1000 w & fiber laser 3000 w

Longo de foco:

150 / 200mm

Comprimento focal de colimação:

Azul 70mm - fibra 100 mm

Tipo do raio laser:

-、○ 8 do △ do、 do ⊙ do、 do ◎ do、 do、

Tipo de interface:

QBH - QBH

Faixa de ondas acessível:

450nm + 1064nm

Tamanho do feixe a laser ajustável:

0,5 - 5mm

Fonte laser utilizável:

Fonte de laser azul e fibra

Detalhes da embalagem:

Exportar embalagem de madeira compensada

Habilidade da fonte:

2000 conjuntos / ano

Descrição do produto

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper

The hybrid-laser wobble welding system, combining Hanwei's blue laser (450nm) and fiber laser (1064nm), enables coaxial integration of the two laser sources. It is specifically applied to the welding of thick, highly reflective metals such as gold, silver, copper, and aluminum.

The adoption of the wobble technique expands its application scope and enhances the adaptability of its technical parameters. Highly reflective materials exhibit higher absorptivity for the blue-fiber hybrid laser, which minimizes spark generation during the welding process. This not only ensures high-quality welds but also delivers a smooth and neat weld surface.

Applications

Widely used in welding high-reflectivity materials.

Key Features

Used for processing thicker materials
Welding with no spatter
Single-side welding with double-side formation
The adjustable spot oscillation design significantly broadens the welding process window and application range

Technical Parameters

Model	HW-36-70-100200-Y-QBH
Laser Power	Blue laser 1000 W & Fiber laser 3000 W
Focusing Focal Length	150 / 200mm
Interface Type	QBH - QBH
Head Type	Y
Net Weight	2.5 Kg
Laser Beam Size Adjustable	0.5 – 5mm
Accessible Wave Range	450nm + 1064nm
Collimation Focal Length	Blue 70 – Fiber 100
Laser Beam Type	―,○,◎,⊙,△,8
Usable Laser Source	Blue and Fiber Laser Source

Performance Advantages

More than 70% high absorptivity
Reduces equipment power requirements compared to red guide beam laser
High and stable welding quality with deep penetration
Smooth welding surface finish
Suitable for thick and highly reflective material welding
Low spark production during welding

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser aspires to democratize the adoption of world-leading laser welding technology for all system integrators. As one of the global elite enterprises certified as both a national high-tech entity and a "specialized, sophisticated, distinctive, and novel" firm, it concentrates exclusively on the full-industry-chain R &D, production, and sales of specialized laser welding equipment—encompassing welding-specific lasers, laser control systems, laser optical systems, and core laser welding technologies.

Product Portfolio

Ring-Spot laser welding systems, blue laser welding units, blue laser + fiber hybrid welding setups, Diode + fiber hybrid welding equipment, YAG + Diode hybrid welding systems, YAG laser welding units, Diode laser welding devices, mold repair laser welding systems, QCW laser welding equipment. Complementary to these are compatible laser welding control systems, laser welding optical systems, and supporting products for laser welding peripheral machinery.

Core Principles

Adhering to the principle of "taking R &D as the core, technology as the cornerstone, and service as the support," Hanwei Laser has consistently served B-end clients (including laser equipment manufacturers and automation firms). It takes "reliable quality, continuous progress, persistent innovation, and thoughtful service" as its service objectives.

Applications

New energy batteries, automotive manufacturing, auto parts production, electronic circuits, optical fiber communication devices, mobile electronics, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, gold and silver jewelry, medical devices, solar energy equipment, eyewear manufacturing, and motor production.

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 1

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 3
