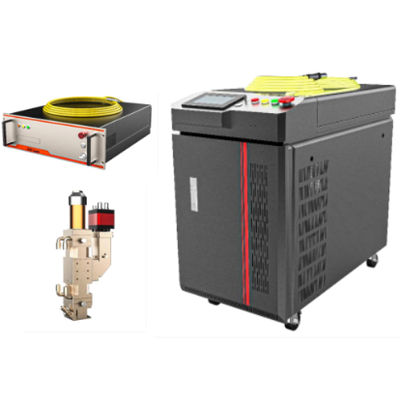

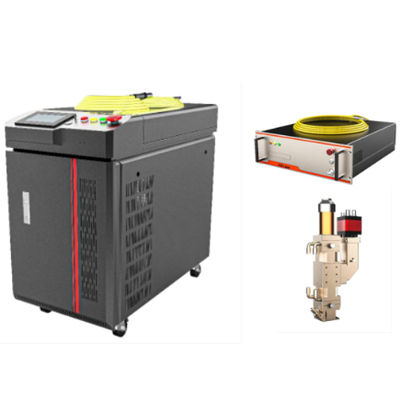

Major Invention Patent RS Series - Ring & Spot Laser Welding Machine for Battery

Major Invention Patent RS Series - Ring & Spot Laser Welding Machine for Battery

Nome da marca:	HanWei
Número do modelo:	HW-DH-2KW+2KW
MOQ:	1 conjunto
preço:	USD / Set
Condições de pagamento:	T/T
Capacidade de abastecimento:	2000 conjuntos / ano

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

Power a laser:

Até 6000w

Estabilidade da potência do laser:

≤ 3%

Comprimento do cabo de fibra:

10m (personalizado)

Tensão operacional:

380V±10% 50/60Hz

Beam Guide (MW):

≥ 0,5

Conexão:

QBH

Núcleo de fibra (um):

50/100

Frequência (quilohertz):

1 ~ 100

Método de resfriamento:

Resfriamento de água

Comprimento de onda:

1080 nm ± 3

Modo de trabalho:

CW/QCW/PWM

Detalhes da embalagem:

Exportar embalagem de madeira compensada

Habilidade da fonte:

2000 conjuntos / ano

Destacar:

RS series laser welding machine

battery ring spot welder

industrial laser welder with patent

Descrição do produto

Major Invention Patent RS Series - Ring & Spot Laser Welding Machine for Battery

The full-featured Ring & Spot Laser Welding Machine is a major patented invention product launched by our company in 2020. Its technical approach is completely different from other ring-shaped spot lasers worldwide, breaking through traditional beam shaping solutions and achieving innovation in laser output forms from the source.

Compared with similar equipment, this product not only has stable performance but also offers an extremely high cost-performance ratio, providing a more competitive option for mid-to-high-end industrial welding. Whether in terms of equipment investment costs or subsequent maintenance expenses, the Starship Fiber Laser Welding Machine demonstrates significant overall economic advantages.

Key Features

Patent product with unique technical approach offering extremely high cost-performance
Unique ring-shaped laser structure enables spatter-free high-speed welding
Intelligent control system compatible with welding any thickness of any metal
Stable, spatter-free welding of aluminum, copper, and stainless steel

Technical Specifications

Model	HW-DH-2Kw+2Kw	HW-DH-3Kw+3Kw	HW-DH-2Kw+4Kw
Laser Power	4000 W	6000 W	6000 W
Working mode	CW/QCW/PWM	CW/QCW/PWM	CW/QCW/PWM
Wavelength	1080 nm ±3	1080 nm ±3	1080 nm ±3
Frequency(Khz)	1-100	1-100	1-100
Guide Beam(mW)	≥0.5	≥0.5	≥0.5
Connection	QBH	QBH	QBH
Fiber Core(um)	50/100	50/100	50/100
Fiber Cable Length	10m (Customized)	10m (Customized)	10m (Customized)
Operating Voltage	380v±10% 50/60Hz	380v±10% 50/60Hz	380v±10% 50/60Hz

Applications

The Starship fiber laser welding machine can still ensure a spatter-free effect when welding high-reflectivity metals such as aluminum and copper, effectively avoiding issues common in traditional welding, such as rough weld seams, uneven weld spots, and excessively large heat-affected zones. Stainless steel welding also maintains smooth weld seams and full shaping, meeting the strict requirements for appearance and structural strength in mid-to-high-end manufacturing industries, making it suitable for high-standard fields such as new energy, 3C, and metal processing.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is a national high-tech enterprise specialized in laser welding technologies. The company concentrates on the full-industry-chain research, development, and production of welding-specific lasers, control systems, optical systems, and welding processes.

Product Range

Ring-Spot laser welding machines
Blue laser welding machines
Diode + fiber composite welding machines
Mold repair laser welding machines
QCW laser welding machines
YAG + Diode composite welding machines
YAG laser welding machines
Diode laser welding machines
Blue laser + fiber composite welding machines

The company also provides supporting equipment including laser welding control systems, optical systems, and relevant peripheral accessories.
