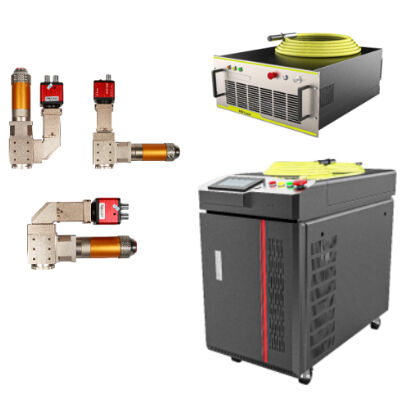

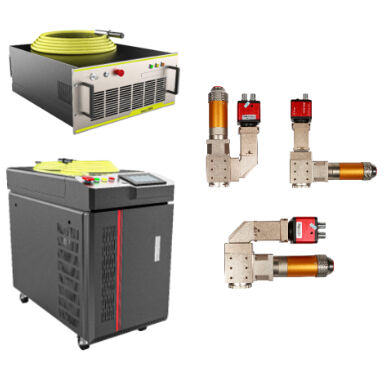

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

Nome da marca:	HanWei
Número do modelo:	HW-QCW
MOQ:	1 conjunto
preço:	USD / Set
Condições de pagamento:	T/T
Capacidade de abastecimento:	2000 conjuntos / ano

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

Potência Laser:

150W/300W

Consumo de energia:

2 kW/2,5 kW

Tamanho da máquina:

665*450*300 mm

Método de resfriamento:

Resfriamento de ar

Potência de pico:

1500W/3000W

Peso da máquina:

22kg/28kg

Energia de pulso:

15J/30J

Freqüência:

100 Hz/2 kHz

Comprimento de onda:

1070nm ± 10%

Estabilidade de energia:

≤ ± 1%

Largura de pulso:

0.5-50

Tensão de entrada:

AC220V 50/60Hz

Detalhes da embalagem:

Exportar embalagem de madeira compensada

Habilidade da fonte:

2000 conjuntos / ano

Destacar:

QCW laser welder with optical distribution

industrial laser welding machine with timing control

QCW laser welder with independent system

Descrição do produto

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

Quasi-Continuous Wave (QCW) fiber lasers are widely used in metal manufacturing fields requiring strict thermal input control, thanks to their ability to deliver high peak energy over extended pulse durations. Whether for spot welding on metal surfaces, regular weld seam joining, or welding of small-to-medium-sized structures demanding stable energy density, this type of laser source maintains reliable beam performance.

Key Features

Key Features of QCW Fiber Laser Sources with Long Pulse Duration and High Energy Output
Specialized Design Solution for YAG Process Replacement Requirements
Structural Advantages in Reducing Daily Operation Burden and Maintenance Costs
Independently Developed Optical Distribution and Timing Control System

Technical Specifications

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Wavelength	1070nm ± 10%	1070nm ± 10%
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Pulse Width	0.5-50	0.5-50
Pulse Energy	15 J	30 J
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Cooling Method	Air Cooling	Air Cooling

Applications

To address the shortcomings of traditional YAG lasers in energy consumption, beam quality, and long-term stability, this QCW laser welding machine has been specifically designed with process reengineering for common YAG welding scenarios. Featuring more uniform energy output and adjustable modes, the equipment is capable of handling typical YAG applications such as metal assembly welding, component joining, and precision structure welding.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser stands as one of the world's rare enterprises boasting independent R&D capabilities for the complete hardware and software suite of high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product range primarily covers various laser welding solutions and complementary laser welding control systems.
